Sewer Inspections: Reasons for Conducting Them, Techniques, and How Drones Can Help

Sewer inspections are an important part of maintaining sewer systems, both for cities and for homes—learn more about how they're conducted, and how drones can help.

Sewer inspections are an important part of maintaining sewer systems, both for cities and for homes.

As you may know from experience, a problem with a sewer system can develop into a major emergency in seconds, with water—or worse, raw sewage—suddenly pumping into areas where it shouldn’t be due to a damaged pipe or some other issue.

City sewer inspections help address these kinds of emergencies by sending inspectors into large pipes and other wastewater infrastructure to identify the root cause of a problem.

In these types of inspections, where the assets being inspected are big enough for a person to fit into them, caged drones like the Elios 2 can often take the place of the person. Using a drone, inspectors can collect visual data to better understand the condition of a pipe in order to diagnose a problem, or simply to ensure that there are not any potential issues present.

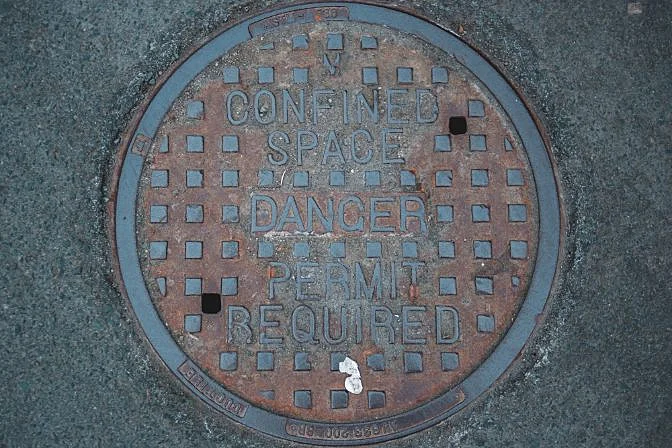

sewer-inspection-manhole-cover

This article covers the nuts and bolts of sewers inspections, including the two main reasons for conducting them, home vs. city sewer inspections, the most common techniques for city sewer inspections, and the different ways that indoor drones can help improve the sewer inspection process.

Here is a table of contents in case you would like to jump around within the article:

Two Reasons for Conducting Sewer Inspections

In sewer inspections, inspectors typically collect visual data to assess the condition of a pipe or some other part of wastewater infrastructure.

There are two main reasons to conduct a visual inspections of a sewer—1) To identify and fix a problem that has suddenly created an emergency; and 2) As part of routine maintenance, in order to avoid a sudden emergency down the road.

Reason 1: To fix a sudden sewer problem that has created an emergency.

This is a common reason for a sewer inspection to occur, either within a home or within a city’s wastewater infrastructure.

In either case, the situation is basically the same. From the outside, you can tell that something is wrong with the sewer system by the symptoms presented, but you’re not sure exactly what is causing the problem.

In the case of a home sewer system, these symptoms could be water getting backed up in the sink, or water burbling in a toilet.

In the case of  a city’s sewer system, these symptoms could be much bigger, like a large amount of sewage suddenly appearing in a body of water.

In either case, a sewer inspection is required immediately in order to find the cause of the problem and fix it.

Reason 2: To identify potential problems and address them as part of routine maintenance of wastewater infrastructure.

Sewer inspections may also be conducted proactively, as part of a  regular maintenance cycle for wastewater infrastructure.

As sewer systems age throughout the world, the likelihood that they may begin to fall apart increases by the year.

In order to identify areas of concern within a sewer network, cities all over the world have started conducting regular sewer inspections, as well as regular cleanings, as part of the overall maintenance of their sewer systems.

Watch this video to see how a routine sewer inspection is conducted by drone:



Want to know how often cities conduct maintenance procedures, including sewer inspections, of their wastewater infrastructure in the U.S.?

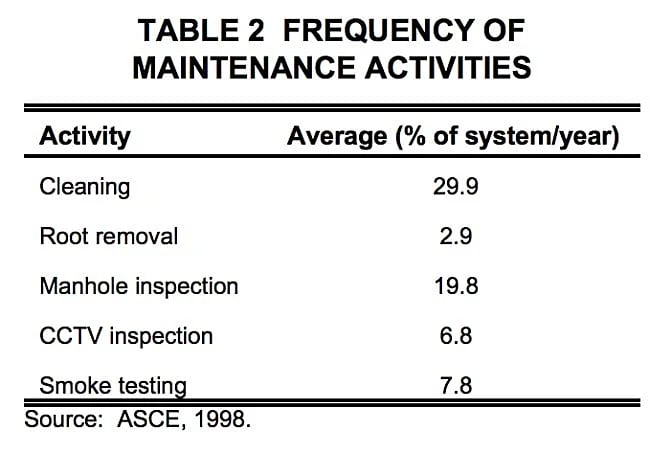

Here is a breakdown of frequency from the American Society of Civil Engineers (ASCE):

sewer-inspections-asce chart

Home vs. City Sewer Inspections

The basic idea of a sewer inspection is to collect visual data on the conditions of the sewer system, regardless of whether the system being inspected is a home sewer system or a city’s sewer system.

That being said, there are some important distinctions between home inspections and city inspections, which we cover in the two sections below.

Home Sewer Inspections

A home sewer inspection typically refers to an inspection of a home’s pipes with a camera attached to a snake line, also called a sewer scope.

Home sewer inspections are performed for the same two reasons listed above—either because a major emergency has arisen, like a flood in the kitchen, and the reason for it needs to be identified, or because the homeowner wants to learn about potential problems in their plumbing before they develop any further.

As the inspector runs out the snake line, the camera records everything within the pipe. The footage is then reviewed to try and discern the cause of any issues in the plumbing, like cracks in the pipe, the presence of roots, clogs, or collapsed lines.

Note: Running a camera through a pipe is also called a sewer lateral inspection.

City Sewer Inspections

City sewer inspections are similar to home sewer inspections in that the goal is to collect visual data in order to evaluate the conditions within a sewer system’s pipes.

However, city sewer inspections are much bigger, more complex operations than home sewer inspections.

One reason for this is simply because the pipes being inspected are bigger—often big enough for a person to fit inside them.

Historically, the only way to inspect these pipes is for inspectors to enter them physically with a flashlight, carefully traversing the pipe and studying every square inch of it with the naked eye. But new technology now allows inspectors to capture high quality visual data on the conditions within sewer pipes without having to enter them—we’ll cover this information in the section on how drones are helping with sewer inspections below.

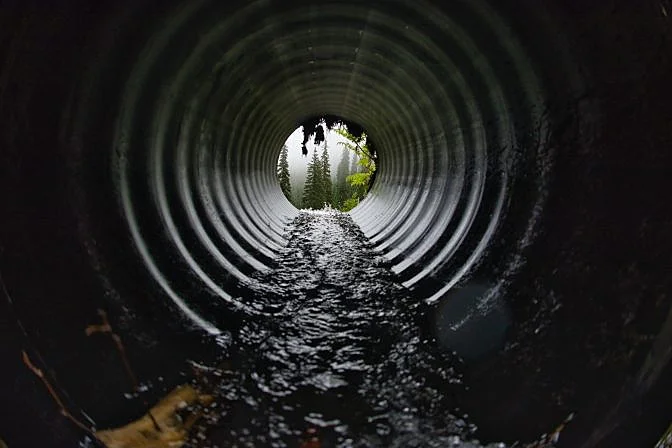

sewer-inspection-tunnel

City Sewer Inspection Techniques

Here are some key techniques used in city sewer inspections.

Visual Inspections

Inspectors physically enter pipes to inspect them with a flashlight.

Visual inspections can also refer to inspectors looking at the conditions surrounding a pipe or other components in wastewater infrastructure.

CCTV (Closed Circuit Television) Inspections

CCTV is commonly used for narrower pipes (4-48 inches in diameter), which are too small for an inspector to enter.

In a larger sewer system, a remotely controlled CCTV camera and its accompanying lights are attached to a raft, which is then floated between manholes inside a pipe while the camera is swiveled in the vertical and horizontal planes for full visual coverage of the pipe. In smaller sewers, the camera and lights can be attached to a sled.

The output of CCTV camera is a video recording with visual data on the condition within the pipe. Once the visual data is collected inspectors can review it to conduct a thorough visual inspection of the pipe and draw conclusions about possible maintenance needs.

Higher-end CCTV cameras offer these features to support sewer inspections:

  • Automatic and remote (manual) focus
  • Manual zoom up to 40x (optical and digital)
  • Iris control
  • Directional lighting capabilities for pipes anywhere from 6” to 48” in diameter

Camera Inspections

Camera inspections can also be done using a similar approach as that taken with a CCTV camera, where a camera is placed on a raft or sled and floated along within the pipe.

Lamping Inspections

A lamping inspection refers to a sewer inspection in which a camera is lowered into a maintenance hole and positioned at the center of the meeting place between the sewer line and the manhole opening.

Using this positioning, inspectors can collect visual data on the inside of the pipe and then review that data later.

Lamping inspections produce the lowest quality of visual data, and thus are only used on low priority pipes (this usually means newer pipes, which are less than 20 years old), or in projects where funds are extremely limited.

Four Ways Indoor Drones Help with City Sewer Inspections

Indoor drones are revolutionizing sewer inspections, allowing inspectors to improve safety, save money, and reduce response time in the face of emergencies.

Here are four ways indoor drones are helping industrial sewer inspections.

1. Safety

By removing the need for inspectors to physically enter confined, potentially hazardous spaces, drones made for flights in confined spaces like the Elios 2 are helping keep inspectors out of harm’s way, and increasing the overall safety of sewer inspections.

2. Savings

By removing the need for inspectors to physically enter pipes, drones help make sewer inspections much more efficient, thereby eliminating extra costs and helping cities realize significant savings.

Péter Kövessi, Director of Client Services at Flind—a company that helps oversee Barcelona’s vast sewer infrastructure—estimates that drone sewer inspections are twice as efficient as human inspections and 40% less expensive per meter of inspection.

3. Extending the reach of remote visual inspection tools (RVI)

The RVI techniques we mentioned above, like floating a CCTV or other type of camera from one manhole to another, can present some range limitations, which can limit their usefulness in certain inspection scenarios.

Drones can also have range limitations, but some companies are creating tools like Flyability’s Range Extender that allow the drone to fly farther from the pilot in order to perform inspections with greater efficiency.

sewer-insepctions-range-extender

Placing the remote control antennas closer to the drone extends its range

4. Reduction of Emergency Response Time

Drones have been helping to significantly reduce the amount of time it takes for inspectors to identify the cause of a problem during an emergency and address it.

For example, in Barcelona inspectors were faced with an urgent problem when a wastewater interceptor that served five different municipalities broke suddenly during a severe storm. Every moment counted in this emergency, since the damaged pipe was leaking raw sewage into the sea at a rate of 500 cubic meters per second.

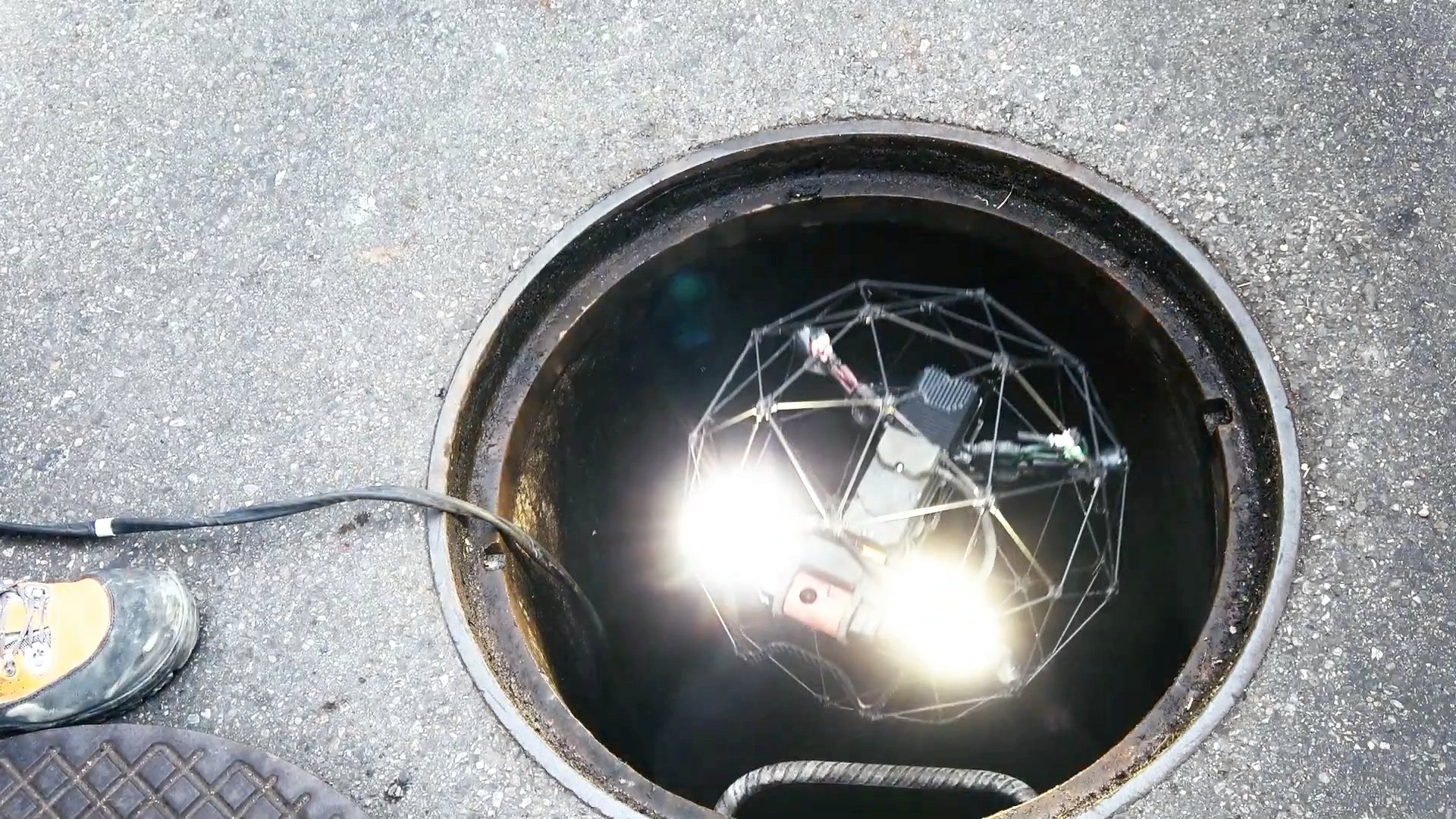

sewer-inspection-elios

An inspector placing the Elios into the sewer system in Barcelona

Although the broken pipe was ten feet in diameter, there was no way for inspectors to enter it because sewage was pouring out at such a rapid rate.

Inspectors were able to fly the Elios into the pipe through intact manholes, both upstream and downstream of the visible break, and quickly survey the entire area to identify the exact location of the break and extent of the damage.

Using this information, experts on the scene were able to ensure that the bypass was connected at the correct place to quickly stop the flow of waste into the sea and to avoid the risk of a future break.

Read the full case study to learn more about how the Elios was used to help inspectors speed up their response to an emergency in Barcelona’s sewer system.
