Wind Turbine Inspection: A Guide
Conducting a wind turbine inspection is crucial for wind-powered energy's overall performance and longevity.
Wind turbine inspection is a tedious and dangerous process due to the extreme height and complexity of the turbine's design.
Inspections are critical to identifying core defects, delamination, internal damages, and other problems that result in decreased energy output.
In this guide on wind turbine inspection, we'll take a deep dive into the following topics:
- What Is a Wind Turbine Inspection and Why is it Important?
- What Type of Inspections are Commonly Done on Wind Turbine Blades?
- Wind Turbine Inspection Methods
- Traditional vs. Modern Wind Turbine Inspection
- Best Drones for Wind Turbine Inspections
What Is a Wind Turbine Inspection and Why Is It Important?
A wind turbine inspection entails inspecting the key components that allow a turbine to function and produce energy. Routine inspections are essential to monitor and mitigate wear and tear on the parts.
As the world advances towards a future of renewable energy, the job growth of wind turbine technicians is expected to grow 60% within the next decade.
While wind turbines are aimed at combating climate change, their blades, unfortunately, are beginning to litter landfills. Turbine blades are made of fiberglass and non-recyclable resins, with the average life expectancy around 25 years.
It may seem like a long time, but as more wind farms are built, the more this problem is exasperated. Therefore, it's imperative to increase the lifespan of the blades through regular inspections and preventive maintenance.
What Type of Inspections Are Commonly Done on Wind Turbine Blades?
Wind turbine inspections are not solely reserved for monitoring the operation of a turbine. The following lifecycle stages also benefit from continued monitoring:
- During and post-manufacturing
- Transporting the components to the work site
- Building the turbines in the field
- Inspect for warranty claims
- Tracking construction progress of wind farms
- Operational performance of the turbines
- Preventative maintenance and damage assessment
Inspecting wind turbine components throughout each stage ensures that all stakeholders involved in the project are informed and assured of quality and performance. Additionally, wind farms are expensive to build and operate, meaning efficiency is vital.
Decreasing the levelized cost of energy (LCOE) continues to be an ongoing goal for the industry.
What Are the Critical Components of a Wind Turbine?
- Turbine blades
- Main bearings
- Nacelle (a protective component housing)
The blades on a wind turbine are tasked with spinning to convert kinetic energy into mechanical energy that's used to power homes, businesses, etc. Operational wear and exposure to the elements predispose the blades to damage.
As the demand for renewable energy increases, existing technologies are being retrofitted for optimal performance. For example, wind turbine blades are growing in size spanning over 260 feet.
To put that in perspective, that's longer than the wingspan of a Boeing 747. With a large surface area, more stress occurs on all turbine components.
With the expansion of wind farms, blade inspections are becoming an integral aspect of prevention and maintenance. Without the blades, there is no energy.

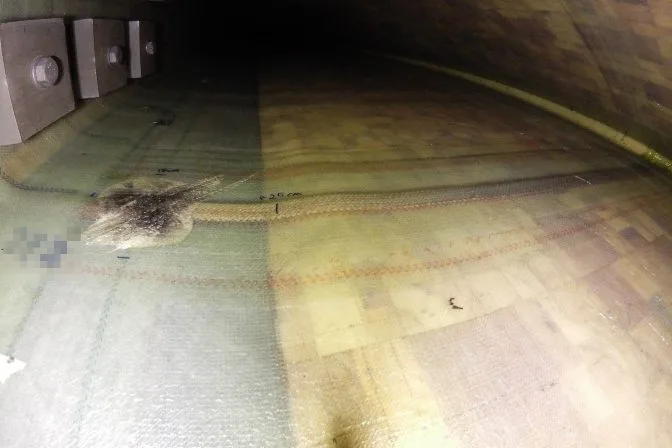

An offshore wind turbine with lightning damage
Wind Turbine Blade Inspection Methods
A wind turbine blade consists of fiberglass and composite resins, prone to numerous issues when exposed to the right conditions. The slightest defect in a blade's surface can potentially reduce the aerodynamic efficiency, resulting in reduced energy output.
A surface inspection uses visual techniques such as cameras, drones, or the human eye to identify any issues. The following flaws are detected visually:
- Surface cracks
- Leading-edge erosion
- Lightning strikes
- Bird strikes
- Leading or trailing edge splits
The benefit of regular wind turbine inspections of the surface is performing corrective maintenance. Catching defects early on allows for repairs that prolong a component's life without reducing energy production.
The internal structure of turbine blades is susceptible to failures during the manufacturing process and in the field. Sub-surface inspections use the following methods to identify structural flaws:
- Thermal Imaging
- Ultrasound (Acoustic)
- Visual inspection within the structure
Sub-surface inspections are non-destructive because of the contact-less technologies that can see through thick composite coatings without deconstructing them. The electromagnetic or ultrasound waves find defects when the wavelength becomes abnormal.
The ability to see through the surface helps identify damaged shear webs (structural blade supports), cracks, manufacturing damage, and bonding erosion.
Internal Inspection of Wind Turbines
The final form of wind turbine inspection is physically going up into the turbine and climbing into each of the three blades. Technicians are legally only allowed to go 91ft (28m) inside the blade.
With many blades exceeding 200ft, over half of the internal structure is not being inspected. In addition, traversing into the blades is specialized work that's dangerous, expensive, and not efficient.
A blade is divided into two sections, and both must be visually inspected to check for cracks, missing or damaged hardware, and any defect that will result in failure. In offshore wind farms, internal corrosion from the salty air is another potential problem.
[Related content: What is a Maritime Drone?]
Some wind farms have several hundred wind turbines that need inspecting annually. Having to traverse into three blades with two compartments each is not a sustainable inspection method.
However, as the renewable energy industry adopts drone technology, inspection processes are improving rapidly.

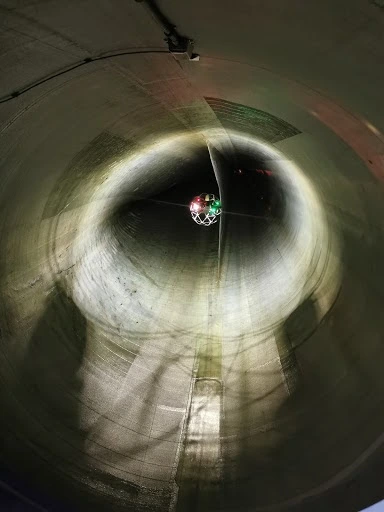

The inside of a wind turbine during an inspection
Traditional vs. Modern Wind Turbine Inspection
Rope access technicians perform the traditional inspection of wind turbines. These highly trained individuals utilize ropes and tethering systems to scale wind turbines for visual inspections, maintenance, and repair.
Turbines are turned off for manual inspections, and the blades are stopped in the six o'clock position. Once the team ascends the tower, they look for damage and knock on the blades to determine the condition of the materials.
Cons of Wind Turbine Rope Inspection
- Turbines are shut off for hours resulting in loss of income and energy
- Operating at high altitudes is dangerous and time consuming
- Knocking on blades is not a sound method of determining the structure's strength
- Wind noise and weather conditions make inspections difficult
- Damaged wind turbine equipment puts workers in danger
The renewable energy sector is turning to drone technology to increase safety, efficiency, and revenue. A drone allows personnel to stay safe on the ground while the drone does the heavy lifting.
[Related read—Wind Turbine Drone Inspection: A Guide]
Artificial intelligence and advanced sensors allow drones to assess real-time actionable data. A massive benefit of drones is that the turbine does not need to be turned off for specific inspections. Therefore, eliminating the reduction of energy and revenue loss.

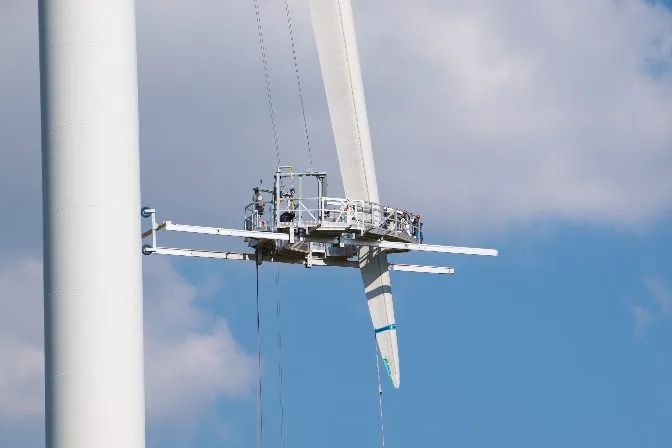

A manual inspection platform for inspections by ropes
Pros of Wind Turbine Drone Inspection
- Some drone sensors are interchangeable for different types of inspections.
- High efficiency with improved data collection times.
- High-resolution images that identify defects the human eye can't detect.
- Drones are used at both onshore and offshore wind farms.
- The operational expense of drones is significantly lower than traditional methods.
- Workers are not in danger at high altitudes and in cramped working environments.
- Real-time data is viewed on a ground control station.
- A wind turbine inspection drone is capable of inspecting the interior of blades.
As the world moves towards a clean energy future, the demand for wind turbine drone inspection will increase exponentially. More turbines will result in more inspections and the need for more intelligent and more efficient solutions.

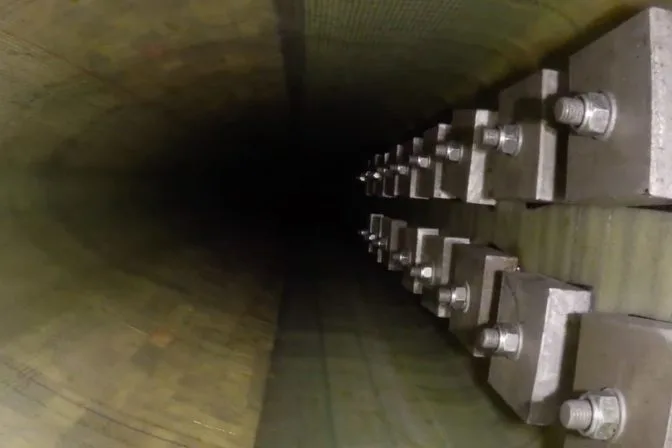

A wind turbine inspection by drone
How Often Are Wind Turbines Inspected?
Wind turbine inspection and maintenance schedules vary, but they are typically conducted two to three times a year. With the introduction of wind turbine drone inspection, there's potential for more inspections as drones are more efficient and cost-effective than traditional ones.
How Much does a Wind Turbine Drone Inspection Cost?
The cost of drone services varies based on equipment, location, and experience. In some areas, the estimated cost of using uncrewed aerial vehicles (UAV) ranges from $300-$500 per turbine, which is approximately 20-25% of manual inspections.
Best Drones for Wind Turbine Inspection
Drones can cut both the inspection time and cost while increasing safety. The following are the best indoor and outdoor drones for a wind turbine inspection.
Internal Drone Solutions
The use of drones for wind farm inspections is still relatively new, and most drones are used for external inspections. That all changed with the Elios inspection drones from Flyability.
[Related read: Internal Wind Turbine Blade Inspection With Elios 2 Cuts Inspection Time in Half]

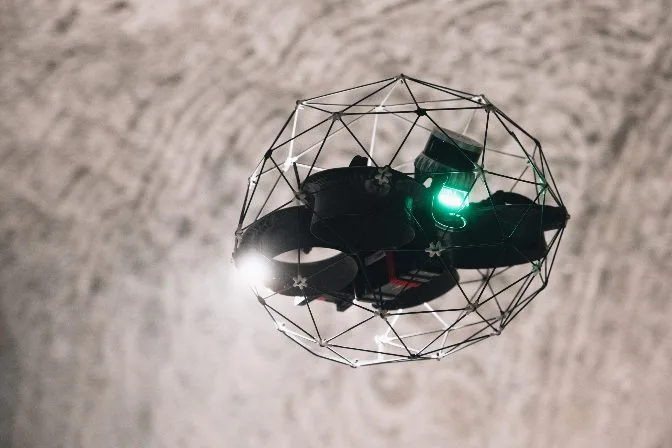

Flyability Elios 3
The Elios 3 is an indoor confined space tool designed to digitize the inaccessible and quickly convert data into digital insights. Its spherical enclosure and FlyAware software allow the drone to inspect the wind turbine blades autonomously.
An unobstructed dual thermal 4K camera works with the 16K lumen dust-proof lighting system to identify signs of cracking, corrosion, and structural issues, to name a few. The Elios 3 is future-proof with a modular payload bay with a dedicated LIDAR port and another for auxiliary payloads.
Utilizing the Inspector 4.0 inspection software, workers boost efficiency by understanding where to focus their maintenance efforts.
Flyability Elios 3 Specs / Features:
- Dual Thermal/4K Camera Sensor: 12 megapixels HD live streaming
- Lighting: 16k Lumen dust proof lighting with oblique lighting
- LiDAR Mapping: Real-time 3D view of the drone’s trajectory and environment
- Flight Time: 12 minutes
- Flight Speed: Up to 7 m/s
- Transmission System: Beyond visual line-of-sight
External Drone Solutions
Inspecting the surface and sub-surface of wind turbines requires less specialized equipment than internal inspections.
DJI Matrice 300 RTK
The Matrice 300 RTK is a powerful inspection drone optimized for exterior applications. Its compatibility with a range of Zenmuse and third-party sensors allows flexibility in inspection methods.
With the Hot-Swappable battery system and 55 minutes of flight time, never worry about battery life. The anti-collision beacon, AirSense, and UAV health management system ensure a safe and smooth operation.
Learn more about the DJI Matrice 300 RTK.

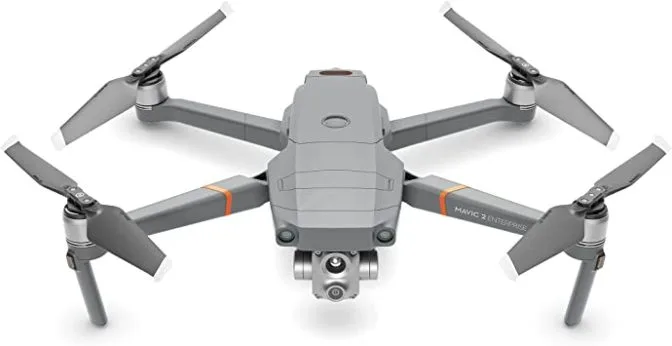

DJI Mavic 2 Enterprise Advanced
The Mavic 2 Enterprise Advanced packs industrial-sized power into the Mavic 2 platform. With its small footprint, anyone can learn to fly and operate this drone. A dual 4K thermal sensor identifies even the most minor defects in wind turbine blades.
DJI's RTK module is excellent for accurate positioning with waypoints as the drone navigates around the wind turbine. The speaker also functions as a communication tool for the team during the inspection.
Learn more about the DJI Mavic 2 Enterprise Advanced.

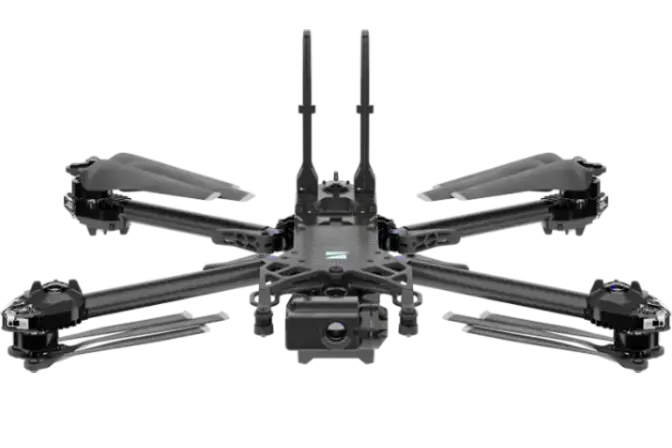

Skydio is known for its autonomous drone technology that takes out the guesswork. Their Skydio X2 drone combines image capability and AI for a dynamic duo that delivers impressive external inspection data.
A standout feature is its 360 Superzoom with 100x optical zoom. This capability is a game-changer for identifying surface damage on wind turbine blades. Its 6-miles of operational range and precision GPS mean no wind farm is too big for the Skydio X2.
Learn more about the Skydio X2.
