Battery Terminology

The purpose of this article is to provide complementary explanations on LiPo battery technologies as well as battery management. Refer to the dedicated battery manual for a detailed description of the battery handling guidelines.

 A Lipo battery has four main physical parameters:

  1. Discharge capacity: remaining charge of the battery.
  2. Voltage: Defines the maximum rotation speed of the motors.
  3. Discharge rate: How much capacity the aircraft draws from battery per second.
  4. Internal resistance: Caused by physical and chemical imperfections wich cause internal power losses and heating. Directly linked to the temperature of the battery and its age.



During flight, the most important indicators for the remaining flight time are discharge capacity and voltage

When the voltage is too low, the motors will not be able to spin fast enough to sustain hovering. On Elios, this critical point is reached at 9.5V. In ELIOS 2 it is reached at 17V. But, as we can see on the figures presented below, the discharge capacity can not be easily linked to the battery voltage as this relation is dependent on the discharge rate, the temperature, the internal resistancer, and its age. Furthermore, the capacity of the battery decreases with the number of cycles.

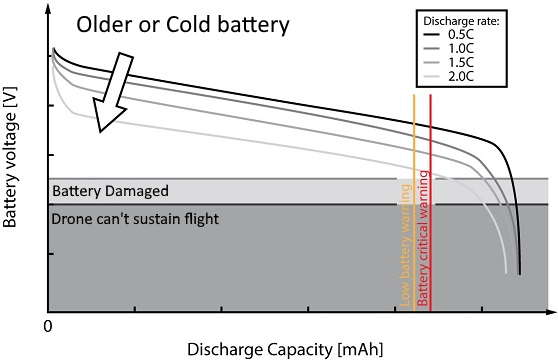

Elios Lipo voltage graphic2

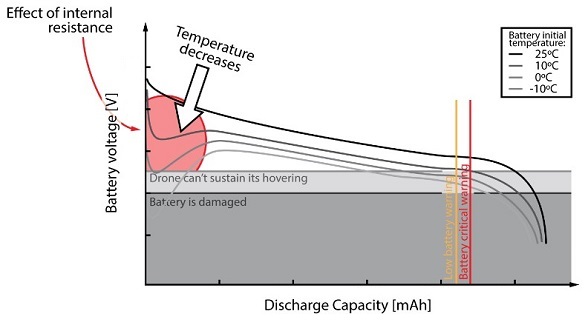

Please note that the figure is just a qualitative illustration to show the effects of temperature and battery age on the relation between battery voltage and charge. The message is that the voltage will drop more quickly with an old/cold battery due to the higher internal resistance.

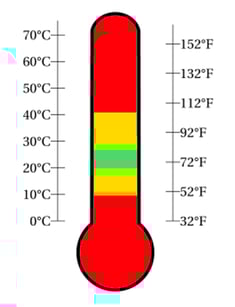

The temperature has a direct effect on the internal resistance. The colder a battery gets, the higher its internal resistance gets and the lower the voltage will be for a given remaining charge. It is therefore recommended that the batteries are around 20-25°C at the beginning of a flight. If the temperature is too low then the battery will not be able to sustain flight. With Elios 2, warnings appear on the cockpit display if the temperature is outside of the allowable range.

The internal resistance also gradually increases throughout the lifetime of the battery due to chemical decay and acculumated damage from over-discharging. These effects can be minimized by always storing the batteries at 50% charge in a cool place, and by not completely draining the batteries in flight.

The ELIOS 2 smart batteries will automatically discharge to a suitable storage charge when not in use, but the ELIOS 1 packs must be manually discharged to avoid decay.

The first “low battery warning” is shown when the battery reaches 25% remaining capacity. The “battery critical warning” is shown when the battery reaches 10% remaining capacity. However, the drone will immediately show the battery voltage critical warning if the voltage drops below 10.4V on Elios 1 and 17.5V on Elios 2.

It is thus important that the pilot remains aware of both the battery voltage and the battery capacity at all time. Those two values are displayed in Cockpit below as ''ROBOT BATT''. Please note that with ELIOS 1, if the battery voltage is below 12.4V when plugged in, the drone consider the battery as not fully charged and is not capable of measuring the remaining charge of the battery. Hence, Cockpit will display "??%" instead of the state of charge.



Also, the battery critical warning is there to warn you that you have reached the limitation of the battery in normal operation. If it can be avoided, don't fly until the battery critical warning. The batteries might accumulate damage everytime they are operated beyond this point, and will show symptoms of old age after fewer cycles.
