Repairing an unglued pentagon

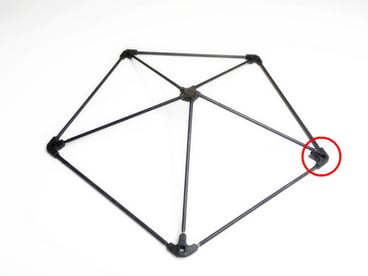

A pentagon can get unglued after a collision. This can easily be repaired following the instructions below.

        1red

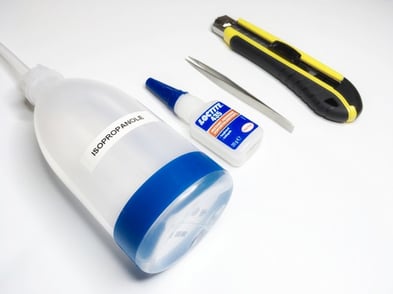

Required materials:

Do not use other glue than the recommended, the gluing quality is very important
  • Loctite 435 or cyanoacrylate glue
  • Isopropanol alcohol (IPA)
  • Sharp tool such as xacto knife or a utility knife
  • Tweezers

3red



Repair instruction:

Use the Isopropanol to clean the end of the carbon rod and if necessary remove all glue residue with the utility knife.

5red

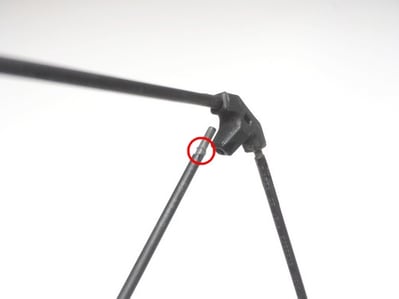

Clean the hole of the plastic part with a drop of IPA, and remove any glue residue with the sharp tweezers.

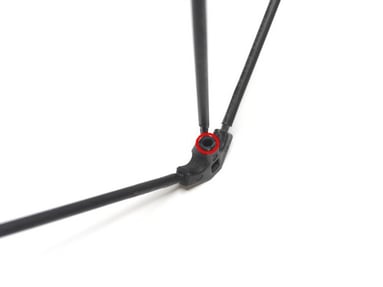

Put a drop of Loctite 435 in the hole of the plastic parts and insert the carbon rod to the end.

6red

Keep some pressure between both parts for 30s.

Wait 15min before applying any stress to the pentagon.
