Study Finds Flyability Drones Help Reduce Greenhouse Gas Emissions

A study conducted by Boiler Room Consulting (BRC) found that Flyability’s collision-tolerant drones can help significantly reduce CO2 emissions from boilers. Read the article to find out how.

In a study, independent consulting group Boiler Room Consulting (BRC) reviewed the potential for reducing Greenhouse Gas emissions (GHG)—specifically CO2—by increasing boiler inspections with the support of Flyability’s collision-tolerant inspection drones.

The results were significant.


BRC found that an increase in the frequency of boiler inspections, which was supported by Flyability drones, could potentially reduce CO2 emissions by as much as 649 metric tons a year.

Read on to learn how.

greenhouse-gas-reduction-elios

Increased Boiler Inspections = Reduced Emissions

Most boiler inspections are conducted on an annual basis. This means that issues in a boiler may go undetected for a long time.

While these issues may not immediately impact the life of the boiler, they can still lead to leaks and other emissions that can have a negative impact on the environment.

By increasing inspections, companies can detect problems that are contributing to harmful emission leaks earlier and take steps to prevent them. Increasing the frequency of inspections can also help companies save money by improving maintenance on expensive assets, such as boilers and pressure vessels, which in turn can increase their longevity.

Why Don’t Companies Conduct Boiler Inspections More Regularly?

Because boiler inspections are expensive.

In a typical boiler inspection, inspectors must physically enter the boiler and conduct a methodical visual inspection, reviewing every part of the boiler with their eyes to collect visual data on its condition.

Many boilers are quite large, so companies have to build scaffolding for inspectors to stand on while conducting inspections. Scaffolding can be expensive to build and take down, often costing anywhere from thousands to tens of thousands of dollars for a single inspection.

The extra time required for building and taking down scaffolding also means extra downtime for the boiler, which represents additional lost profits for the company—sometimes as high as hundreds of thousands of dollars a day.

Due to the high costs of inspections, many companies usually decide not to inspect their boilers more than once a year, which is the common legal requirement for most countries.

How Can Flyability Drones Help Increase the Frequency of Inspections?

Using a drone instead of a person to collect visual data inside a boiler can significantly reduce the cost of the inspection, in some cases by as much as 90% or more. This cost reduction allows companies to increase the frequency of inspections.

But you can’t use just any drone for a boiler inspection.

Boilers present many challenges for flying, since the space within them is tight and full of objects for a drone’s blades to hit, which would immediately bring a normal drone crashing down. Also, in order to collect useful visual data, the drone must be stabilized while in flight and have a light source that can allow inspectors to understand the depth of different items on a wall or ceiling that’s being inspected, such as pitting, grooves, or welds.

Flyability drones are designed specifically for inspections inside confined spaces like boilers, and help address all of these challenges. Flyability’s Elios and Elios 2 both sit within a cage, which allows the drone to collide and continue flying, making them uniquely suited for boiler inspections.

Watch this video to see a boiler inspection conducted with the Elios 2:

How Boiler Room Consulting Measured the Environmental Impact of Increased Inspections

Boiler Room Consulting wanted to test the theory that increased inspections can reduce the overall amount of CO2 a boiler emits.

To do this, they decided to focus on a boiler’s combustion head.

The combustion head was chosen because combustion head failures are known to lead to elevated CO production, which can result in an increase in CO2 emissions, and because combustion head failures can happen without creating an acute issue that attracts attention and requires immediate maintenance.

burner-combustion-head

A burner combustion head



Combustion heads undergo severe stress during regular use, often experiencing temperature swings of hundreds of degrees Fahrenheit. This constant cooling and heating can lead to failures that start off small in magnitude but become worse and worse over time.

These failures can happen in several different ways—they can come in the form of a gas manifold cracking, a flame diffuser fouling, general cracking or deterioration, a gas spud or poker deterioration or plugging, or the plugging or deterioration of a fuel oil nozzle.

[RoNik Inspectioneering tested the Elios 2 15 different times in rigorous inspection scenarios—find out what they learned in this article.]

BRC’s Combustion Head Experiment

Theory to be tested

A damaged combustion head will cause a boiler to produce higher CO2 emissions.

A damaged combustion head can produce a higher level of CO in the boiler’s flue gases. This high level of CO negatively impacts the efficiency of combustion within the boiler, ultimately resulting in a higher emission of CO2.

Questions to be answered

  • Does a damaged combustion head increase CO2  emissions?
  • If so, by how much?
  • Are emissions increased by different amounts for different types of fuel?
  • Could an increase in inspections identify a damaged combustion head in time to prevent an increase in CO2 emissions?

Testing the Theory

The boiler used for BRC's study was a typical 150,000 lb per hour, 350 PSIG industrial watertube (IWT) steam boiler.

BRC examined three different fuel types within the boiler—Natural Gas, #2 fuel oil, #6 fuel oil with typical carbon, hydrogen, oxygen, and sulfur contents and the gross calorific heating values associated with those constituents.

For each fuel type, BRC compared the flue gas in the boiler that had a combustion head in good condition and the one with a failed combustion head.

The findings were significant.

Although the failed combustion head only produced a loss in overall efficiency for the boiler of between .35% and .41%, the corresponding amount of CO2 released by this loss of efficiency was between 442 and 649 metric tons a year. greenhouse-gas-findings-flyability

The cause of increased CO2 emissions

A broken combustion head increases CO in a boiler’s flue gases, which reduces the efficiency of combustion.

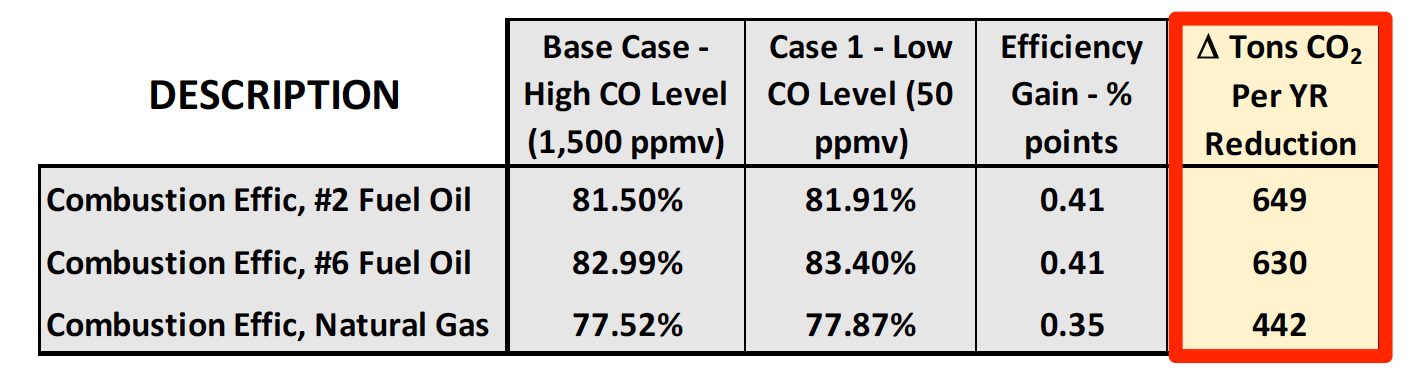

In the chart shown above, you can see that the Base Case (i.e., the damaged combustion head) emitted 1,500 ppmv (Parts Per Million by Volume) of CO into the boiler, while the combustion head that was in good condition only emitted 50 ppmv of CO into the boiler.

The increased CO released into the boiler by the broken combustion head resulted in an increase in the amount of energy required from the boiler to continue its regular operations. This increase in energy represents a loss of efficiency—shown in the chart above as a loss of .35% to .41%—and results in a higher production of CO2.

Download the Full Study

Answers to BRC’s questions

  • Does a damaged combustion head increase CO2  emissions? Yes.
  • If so, by how much? Anywhere from 442 to 649 metric tones per year, depending on the type of fuel.
  • Are emissions increased by different amounts for different types of fuel? Yes—see above.
  • Could an increase in inspections identify a damaged combustion head and prevent an increase in CO2 emissions? Yes. An increased frequency of inspections increases the chance for discovering combustion head failure, and reduces the potential for increased CO2 emissions.

Conclusion

BRC found that increased inspections supported by Flyability’s collision-tolerant drones can reduce CO2 emissions by 442 to 649 metric tons a year—a huge reduction, and that’s just from a single boiler.

It’s important to remember that BRC focused only on one potential type of damage.

A lot can go wrong in a year, especially within an asset subjected to such large changes in temperature, and other kinds of damage could also lead to a boiler emitting substances that are potentially harmful to the environment.

“The use of collision-tolerant drone technology facilitates the practicality of more frequent inspections through reducing complexity, potential safety concerns with personnel performing the inspections, and overall costs including operating costs.”

- From BRC’s final report

Download the Full Study

As BRC notes in its report, there are other incentives for a company to increase inspections.

In addition to reducing the emission of Greenhouse Gases and other harmful substances, using a drone instead of a person for inspections in confined spaces means keeping a person out of a potentially harmful scenario.

Increased inspections can also save companies money.

From a purely financial perspective, increasing the efficiency of a boiler will result in savings for the company running it by reducing overall operating costs and by potentially increasing the longevity of the boiler.
